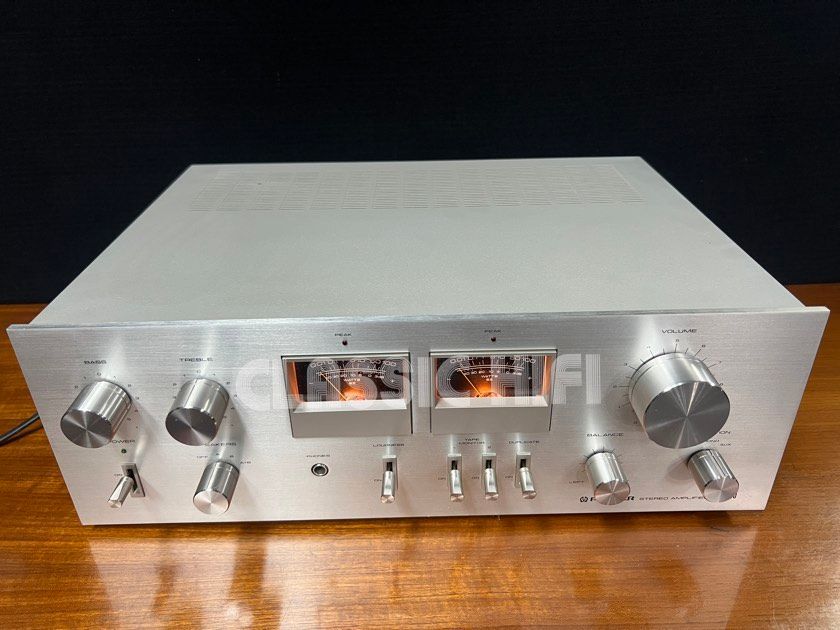

Stereo integrated amplifier, silver fronted with metal case, with the ever-desirable VU power metres.
2 speaker systems, MM Phono (turntable), 2 x auxiliary, Tuner, & 2 x Tape inputs, amounting to 5 line level inputs for your iPod, CD player, computer or TV audio.
Treble, midrange, bass tone controls, loudness, earphones jack
Speaker connections facilitate bare wire or banana plugs and inputs are the universal RCA plugs.
Other features include outputs for 2 sets of speakers, separate bass and treble tone controls, loudness contour, separate watt meters for each channel, LED peak indicators to warn of speaker overload, electronic protection, 2-aux inputs, 2-tape monitoring and one-way tape duplication, plus DIN tape.
Specifications
Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 40kHz
Total harmonic distortion: 0.04%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 86dB (MM), 95dB (line)
Output: 150mV (line)
Semiconductors: 1 x IC, 29 x transistors, 26 x diodes
Dimensions: 450 x 148 x 329mm
Weight: 11.1kg
Year: 1978
(Reference: HIFI Engine)
Made in Japan
240V
Serviced by our professional technician.
Metal cover has been re-painted, then amplifier has been cleaned and detailed to Classic HiFi’s highest standard
Comes with 6 months warranty
We offer 3 month Lay-By and Afterpay for in store purchases
We can post Australia wide.
If you would like more information, eg: pricing or freight cost, please complete our inquiry form with your postcode and we can get back to you
